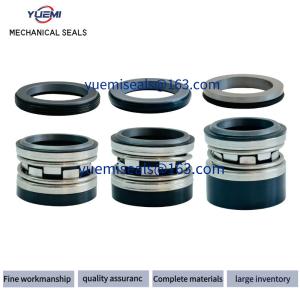

2100, 2102, 2103 Replacement to: John Crane 2100, Aesseal B05 Seal for Multi Water Pump

  • 1
  • 2
  • 3

Brand Name : YUE MI

Model Number : 2100/2102

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 30/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Performance : High Pressure

Sealing : FKM CAR SIC TC CE NBR EPDM

Use To : John Crane Type

Support : OEM/ODM

Installation : Easy to Install

Origin : Guangzhou, China

Oem : supper

Size Of Product : FULL SIZE

Traemark : YUEMI

Rotary Ring : Carbon/Sic/TC

Spring Other Parts : SUS304 / SUS316

Appliion : water pump

Contact Now

Mechanical Seal T2100


Replacement to:
John Crane 2100S, Hermetica M212.K, Flowserve 140, AESSEAL B05U, AESSEAL B05,Vulcan 14DIN, US SEAL G, Sterling 540, LIDERING LRB25

Operational Conditions:

  1. John Crane seal 2100 is structural simple and reliable. It has a wide application scope.
    2100, mechanical seal is suitable for clean water pumps, sewage pumps, submerged pumps, process pumps, etc.
    This also can provide important material certifications available. Salvador, Senior, Sandy.
  2. Temperature: -40ºC to 150ºC, depend on o-ring material
  3. Pressure: Up to 2 bar
  4. Speed: Up to 13 m/s
  5. End play/axial float allowance ±1mm
  • Materials:
  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, , PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:2100
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities:

Temperature
-40ºC to 150ºC, dependent on the elastomer
Pressure
 ≤2.0MPa
Speed
 ≤13m/s
End play/axial float allowance
±0.1mm
Size
14-100MM
Brand
yuemi
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

2100, 2102, 2103 Replacement to: John Crane 2100, Aesseal B05 Seal for Multi Water Pump

Metric d D3 D2 D1 L1 L11 L12 L2 Size/ d D3 L1
Inch
10 10 20 15 21 15 27.5 35 5 0.375 9.5 20 15
12 12 22 17 23 15 26.5 34 6 0.500 12.7 24 15
14 14 24 19 25 15 29 34 6 0.625 15.8 26 15
15 15 25 20 26 15 29 34 6 0.750 19 32 20
16 16 26 23 27 15 29 34 6 0.875 22.2 36 20
18 18 32 25 33 20 31.5 39 6 1.000 25.4 38 20
20 20 34 27 35 20 31.5 39 6 1.125 28.5 42.3 26
22 22 36 29 37 20 31.5 39 6 1.250 31.7 46 26
24 24 38 31 39 20 34 44 6 1.375 34.9 49 26
25 25 39 32 40 20 34 44 6 1.500 38.1 54 30
28 28 42 35 43 26 36.5 44 6 1.625 41.2 56 30
30 30 44 37 45 26 35.5 43 7 1.750 44.4 61 30
32 32 46 40 48 26 35.5 48 7 1.875 47.6 64 30
33 33 47 40 48 26 35.5 48 7 2.000 50.8 66 30
35 35 49 42 50 26 34.5 47 8 2.125 53.9 69 30
38 38 54 47 56 30 37 47 8 2.250 57.1 77 33
40 40 56 49 58 30 37 47 8 2.375 60.3 80 33
43 43 59 52 61 30 37 52 8 2.500 63.5 83 33
45 45 61 54 63 30 37 52 8 2.625 66.6 88 33
48 48 64 57 66 30 35 50 10 2.750 69.8 89 33
50 50 66 60 70 30 37.5 50 10 2.875 73 96 33
53 53 69 63 73 30 37.5 60 10 3.000 76.2 99 40
55 55 71 65 75 30 37.5 60 10 3.125 79.3 103 40
58 58 78 68 78 33 42.5 60 10 3.250 82.5 104 40
60 60 80 70 80 33 40.5 58 12 3.375 85.7 108 40
63 63 83 73 83 33 40.5 58 12 3.500 88.9 112 40
65 65 85 75 85 33 40.5 68 12 3.625 92 114 40
68 68 88 79 90 33 40.5 68 12 3.750 95.2 118 40
70 70 90 81 92 33 48 68 12 3.875 98.4 122 40
75 75 99 86 97 40 48 68 12 4.000 101.6 124 40
80 80 104 92 105 40 47.5 77.5 12.5
85 85 109 97 110 40 47.5 77.5 12.5
90 90 114 102 115 40 52.5 77.5 12.5
95 95 119 117 120 40 52.5 77.5 12.5
100 100 124 122 125 40 52.5 77.5 12.5

.
